This guide explains how to view and update a device's Auth Mode using the BioStar 2 API.

The Auth Mode defines how users verify their identity, ex: face, fingerprint, PIN, card, or a combination.

You can configure this through our API.

Prerequisites

1. You must know the device ID.
2. Ensure your logged in account has permission to read and update device settings.

Step 1. Retrieve Current Auth Mode Data of the Device

This step is necessary to retrieve the 'operation_modes' data that will be used in the next step.

If you already know the current 'operation_modes' data, or if you wish to change the device's auth mode completely and remove all of the existing auth mode data, you can go to Step 2 directly.

When you modify the device auth mode in step 2, it will overwrite the current data with whatever you send in. So, if you want to keep the current data and modify part of it or add a new auth mode, this step will be necessary to avoid overwriting them unintentionally.

To check the current auth modes of a device,

1. Send a GET request to the following endpoint:

/api/devices/<device id>

Replace <device id> with the ID of the device whose authentication mode you want to check.

2. Check operation_modes in the response

It provides the list of current Auth Modes configured on the device.

Each Auth Mode object includes:

1. mode: The Auth Mode code (see table below at the end of this article).
2. schedule_id: the ID of the schedule to which this Auth Mode applies.

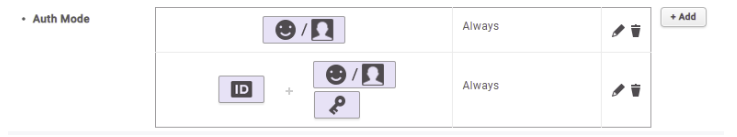

Example:

For the above device auth modes data, you will find operation_modes data as below after running the API:

"operation_modes":

[

    { "mode":"11", "schedule_id":{"id":"1"} },

    {"mode":"40", "schedule_id":{"id":"1"} }

]

Step 2. Modify Authentication Modes

When you update operation_modes, you overwrite all existing Auth Modes with the new ones you provide.

For example, if you want to add an Auth Mode while keeping existing ones, include the current Auth Modes in your request along with the new one.

To update the auth modes, send a PUT request to the same device endpoint:

/api/devices/<device id>

In the request body, provide the new "operation_modes" array.

Each object must include:

1. mode: The Auth Mode code (see table below at the end of this article).
2. schedule_id: the ID of the schedule to which this Auth Mode applies.

Example - Adding a New Auth Mode:

Current Modes:

[

    { "mode":"11", "schedule_id":{"id":"1"} },

    {"mode":"40", "schedule_id":{"id":"1"} }

]

If I want to add another Auth Mode(add 'Card Only' Auth Mode = 21)  from the current Auth Modes above, I can use the following request body:

[

    { "mode":"11", "schedule_id":{"id":"1"} },

    {"mode":"40", "schedule_id":{"id":"1"} },

    {"mode":21, "schedule_id":{"id":"1"} }

]

Result:

Previous:

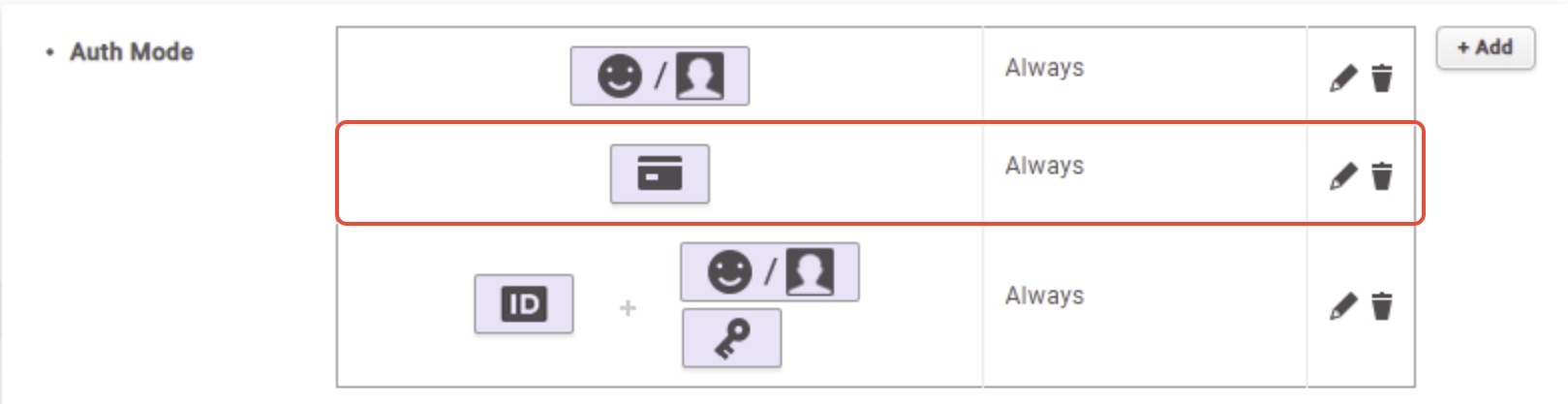

After:

You can see that a new auth mode with just the card has been added.

'mode' codes:
